Introduction

HQS NMR Tool is the first package in the HQStage module HQS Spectrum Tools. With HQS NMR you can calculate and analyze NMR spectra for molecules or other spin systems. The tool is a Python-based library with a python API and uses RUST and C++ components for performance critical calculations.

Our NMR spectrum solvers are designed for both speed and precision. They are based on a very efficient implementation in the frequency domain. With a variety of solvers at your disposal, you can leverage symmetries and clustering techniques to significantly accelerate your calculations. This flexibility allows you to tailor your approach based on the specific characteristics of your system, optimizing performance without sacrificing accuracy. Additionally, our automated solver intelligently selects the optimal solver version for your unique system.

HQS NMR is also an integral part of HQSpectrum, our end-to-end solution for NMR Spectra analysis. If you are interested in using this cloud service please request access by sending an email to hqspectrum@quantumsimulations.de.

If you are interested in the theory behind NMR or the math of how to calculate NMR spectra, take a look at the sections NMR and Math.

Getting started

To use the python API follow the installation steps outlined here and check out the examples, which will give you a quick introduction to the package. You can find information on how to download and run the examples in the basic usage section of our HQStage documentation.

Background

This chapter provides an overview of the fundamentals behind the HQS NMR tool.

In section NMR, we describe the basics of nuclear magnetic resonance (NMR) from experimental and theoretical perspective. We discuss, for example, the different relevant parameters entering an NMR calculation, such as the shifts or couplings between nuclear spins, and introduce the relevant Hamiltonian of a molecule for NMR.

In Math, we describe in greater detail the math behind calculation of spectra in the HQS NMR Tool.

NMR

Nuclear magnetic resonance (NMR) spectroscopy is one of the most important analytical techniques in chemistry and related fields. It is widely used to identify molecules, but also to obtain information about their structure, dynamics, and chemical environment. Some fundamental aspects of NMR are summarized below.

NMR spectrometers place the sample into a strong, but constant magnetic field and use a weak, oscillating magnetic field to perturb the nuclei. At or near resonance, when the oscillation frequency matches the intrinsic frequency of a nucleus, the system responds by producing an electromagnetic signal with a frequency characteristic of the magnetic field at the respective nucleus.

Zeeman interaction

For the simulation of NMR spectra for molecules, the most important part is the Zeeman effect describing the interaction of the nuclear spin with the external magnetic field $\mathbf{B}$. The corresponding Hamiltonian can be written as

$${\hat{H}}_{\text{Z}}=-\gamma \mathbf{B}\cdot \hat{\mathbf{S}},$$

where $\gamma$ is the gyromagnetic ratio, the ratio of a system's magnetic moment to its angular momentum, and $\hat{\mathbf{S}}=({\hat{S}}^x,{\hat{S}}^y,{\hat{S}}^z{)}^{\text{T}}$ is the total spin operator. Assuming that the strong (and constant) magnetic field is in $z$-direction only, meaning $\mathbf{B}=(0,0,B^z)$, the Hamiltonian simplifies to

$${\hat{H}}_{\text{Z}}=-\gamma B^z{\hat{S}}^z={\omega }_0{\hat{S}}^z,$$

where ${\omega }_0=-\gamma B^z$ is the so-called Larmor frequency, the angular frequency corresponding to the precession of the spin magnetization around the magnetic field at the position of the nucleus.

As an example, consider the simplest nucleus, ${}^1$H, consisting of only one proton, for which the gyromagnetic ratio is $\gamma /2\pi =42.6$ MHz T${}^{-1}$, meaning that a 500 MHz NMR spectrometer has a static magnetic field of about 11.7 Tesla. The energy of radiation of the Larmor frequency $\nu =500$ MHz ($h\nu \approx 3.3\cdot 10^{-25}$ J) is several orders of magnitude smaller than the average thermal energy of a molecule at a temperature of $T=298$ K ($k_{\text{B}}T\approx 4.1\cdot 10^{-21}$ J). Therefore, the occupations of the spin states are almost equal at room temperature, only a small surplus is responsible for the sample magnetization.

Chemical shift

Perhaps the most important aspect for NMR spectroscopy in chemistry is that the nuclei in molecules are shielded against the external magnetic field by the electrons surrounding them. This can be expressed by adding a correction term to the Hamiltonian as

$${\hat{H}}_{\text{Z}}=-\gamma (1-\mathbf{\sigma })\mathbf{B}\cdot \hat{\mathbf{S}},$$

where $\mathbf{\sigma }$ is referred to as the shielding tensor quantifying the change in the local magnetic field experienced by the nucleus in the molecule relative to a bare nucleus in vacuum. However, if the molecules of interest are in solution, or in liquid phase in general, they can rotate freely and only the isotropic chemical shift $\sigma =\frac{1}{3}\text{Tr}(\mathbf{\sigma })$ is of interest,

$${\hat{H}}_{\text{Z}}=-\gamma (1-\sigma )B^z{\hat{S}}^z.$$

In practice, chemical shifts are normally used instead of chemical shieldings: instead of invoking the Larmor frequency of a nucleus in vacuum, shifts are defined with respect to the resonance frequency ${\nu }_{\text{ref}}$ of a reference compound:

$$\delta =\frac{\nu -{\nu }_{\text{ref}}}{{\nu }_{\text{ref}}}\approx {\sigma }_{\text{ref}}-\sigma ,$$

The standard reference for ${}^1$H-NMR is the Larmor frequency of the protons in TMS [tetramethylsilane, Si(CH${}_3$)${}_4$]. Chemical shifts are normally reported on a scale of ppm (parts per million): most ${}^1$H chemical shifts are observed in the range between 0 and 10 ppm, and most ${}^{13}$C chemical shifts between 0 and 200 ppm. Since the scale of chemical shieldings is so small in absolute terms $\left(|\sigma |\ll 1\right)$, for practical intents and purposes the chemical shift can be substituted directly into the Hamiltonian:

$${\hat{H}}_{\text{Z}}=-\gamma (1+\delta )B^z{\hat{S}}^z.$$

Spin-spin coupling

Up to this point, the nuclear spins have been regarded to be isolated from each other. However, their magnetic moments have an effect on neighboring spins. The interaction of the nuclear spins can happen through two different mechanisms. The first one is the direct (or through space) spin-spin coupling, where the interaction strength depends on the distance of the two nuclei and the angle of their distance vector relative to the external field. As it comes from the direct interaction of two magnetic dipoles, it is also referred to as dipolar coupling. However, the effect is generally not observable in liquid phase since the free rotation of the molecules averages over all orientations and thus results in a vanishing average coupling.

An effect observable in the NMR spectrum is indirect spin-spin coupling, which is mediated by the electrons of a chemical bond. Due to the Pauli principle, the electrons of a covalent bond always have an anti-parallel spin orientation, and one electron will be closer to one nucleus than to the other, preferring an anti-parallel orientation with the nearby nucleus. Depending on the number of electrons involved in the transmission of the interaction, either a parallel or an anti-parallel orientation of two nuclei may result in a lower energy. Importantly, this interaction does not average out in solution since it mainly depends on the electron density at the position of the nucleus and not on the orientation of the distance vector relative to the field, which is why it is also referred to as scalar coupling. Since only s-orbitals have a finite electron density at the nucleus, the coupling depends on the electron density in those orbitals alone.

The interaction Hamiltonian in the case of homonuclear coupling is given by

$${\hat{H}}_J=2\pi J{\hat{\mathbf{I}}}_1\cdot {\hat{\mathbf{S}}}_2,$$

where $\hat{\mathbf{I}}={\hslash }^{-1}\hat{\mathbf{S}}$. In heteronuclear coupling, where the difference in Larmor frequencies is much larger in magnitude than the corresponding coupling constant, $|{\omega }_1-{\omega }_2|\gg |J|$, the Hamiltonian can be written in terms of the $z$-components only,

$${\hat{H}}_J=2\pi J{\hat{I}}_1^z{\hat{S}}_2^z.$$

It should be noted that the $\mathbf{J}$-coupling tensor is a real $3\times 3$ matrix that depends on the molecular orientation, but in liquid phase only its isotropic part $J$ is observed due to motional averaging. Typical $J$-coupling strengths between protons in ${}^1$H-NMR amount to a few Hz.

NMR spin Hamiltonian for molecules in liquid phase

The spin Hamiltonian in a static magnetic field in frequency units (rad s${}^{-1}$) is given by

$${\hslash }^{-1}\hat{H}=-\sum _k{\gamma }_k(1+{\delta }_k)B_0{\hat{I}}_k^z+2\pi \sum _{k<l}{J}_{kl}{\hat{\mathbf{I}}}_k\cdot {\hat{\mathbf{I}}}_l,$$

where the sum runs over all nuclear spins of interest.

There are several interactions that have not been taken into account here. As already mentioned, the direct dipolar spin-spin interaction vanishes in liquids due to motional averaging. Beyond dipolar coupling, such as quadrupolar interactions, for instance, are relevant only for nuclei with spin quantum number $I\ge 1$. Furthermore, interactions with unpaired electrons need a special treatment as well. While most organic compounds are diamagnetic (closed-shell), paramagnetic NMR also exists.

Math

The hamiltonian $\hat{H}$ we are using for the NMR systems is of the form

$$\begin{array}{rl}\hat{H}& =-\sum _{\ell }{\gamma }_{\ell }{B}^z\left(1+{\delta }_{\ell }\right){\hat{I}}_{\ell }^z+2\pi \sum _{k<l}{J}_{kl}{\hat{\mathbf{I}}}_k\cdot {\hat{\mathbf{I}}}_l\end{array}$$

where ${\gamma }_{\ell }$ are the gyromagnetic factors and ${\delta }_{\ell }$ the chemical shifts of nuclear spin $\ell$, and $J_{kl}$ denotes the coupling between spins $k$ and $l$, and ${\hat{I}}^{\alpha }={\hat{S}}^{\alpha }/\hslash$, with ${\hat{S}}^{\alpha }$ being the usual $SU(2)$ spin operators.

Within NMR we have a strong magnetic field $B_z$ in the $z$-direction, and electromagnetic pulses / oscillating fields are applied to flip the spins into the $x/y$ plane. Since $B_z$ is typically of the order of 500Mhz, the pulses of 10kHz bandwidth, and the required resolution is sub 1Hz, we refrain from modelling the explicit time dependence of the pulses. Instead we model the pulses directly by calculating the spectral function, i.e., time-dependent correlations between the corresponding ${\hat{M}}^{\pm }$ operators.

The spectrum measured in an NMR experiment corresponds to the spectral function calculated in the HQS NMR Tool.

Calculation of the spectral function

We calculate the spectral function $A(\omega )$ as the imaginary part of the spin-spin correlation function

$$\begin{array}{rl}A(\omega )& =\frac{-1}{\pi }\Im \mathcal{G}(\omega )\\ \mathcal{G}(\omega )& =\int \mathrm{dt}{e}^{-i\omega t}G(t)\\ G(t)& =-i⟨{\hat{M}}^{-}(t){\hat{M}}^{+}(0)⟩\\ {\hat{I}}^{\pm }& ={\hat{I}}^x\pm i{\hat{I}}^y\\ {\hat{M}}^{\alpha }& =\sum _{\ell }{\gamma }_{\ell }{\hat{I}}_{\ell }^{\alpha }\end{array}$$

the ${\hat{M}}^{\alpha }$ operators, $\alpha \in \{x,y,z,+,-\}$, contain the gyromagnetic factors for convenience, and $t$ is the real time dependence.

The contribution of an individual nuclear spin $\ell$to the full NMR spectrum is obtained via

$$\begin{array}{rl}{G}_{\ell }(t)& =-i⟨{\gamma }_{\ell }{\hat{I}}_{\ell }^{-}(t){\hat{M}}^{+}(0)⟩,\end{array}$$

while the full NMR signal is the sum of individual contributions.

Temperature

For a typical NMR setup, the temperature is much larger compared to the energy scales in the NMR Hamiltonian. Thus, we have to take finite or even infinite temperature $T$ into account. We define the partition sum $Z$

$$Z=\sum _n{\mathrm{e}}^{-\beta E_n}$$

with the inverse temperature $\beta =1/(k_{\mathrm{B}}T)$ and arrive at

$$\begin{array}{rl}G(t)& =-i⟨{\mathrm{e}}^{i\hat{H}t}{I}^{-}{\mathrm{e}}^{-i\hat{H}t}{\hat{M}}^{+}(0)⟩\\ & =\sum _n{\mathrm{e}}^{-\beta E_n}{\mathrm{e}}^{i{E}_{n}t}⟨n|{\hat{M}}^{-}{\mathrm{e}}^{-i\hat{H}t}{\hat{M}}^{+}|n⟩/Z\\ & =\sum _{n,m}{\mathrm{e}}^{-\beta E_n}{\mathrm{e}}^{(E_n-E_m)t}⟨n|{\hat{M}}^{-}|m⟩⟨m|{\hat{M}}^{+}|n⟩/Z\\ \mathcal{G}(\omega )& =\frac{-i}{Z}\int \mathrm{d}\omega \sum _{n,m}{\mathrm{e}}^{-\beta E_n}{\mathrm{e}}^{i(\omega +E_n-E_m)t}⟨n|{\hat{M}}^{-}|m⟩⟨m|{\hat{M}}^{+}|n⟩\\ & =\frac{-i\pi }{Z}\sum _{n,m}{\mathrm{e}}^{-\beta E_n}\delta \left(\omega -(E_m-E_n)\right)⟨n|{\hat{M}}^{-}|m⟩⟨m|{\hat{M}}^{+}|n⟩\end{array}$$

Here, the last equation is a Lehmann-type spectral representation, which is suitable if the complete spectrum is known. $E_n$ are the eigenenergies of the spin NMR-Hamiltonian.

Resolvent formulation

In order to avoid having to determine the complete spectrum, we write the Green's function $\mathcal{G}(\omega )$ directly in operator form, introducing a convergence ensuring factor (broadening) $\eta >0$ and taking care of causality

$$\begin{array}{rl}A(\omega )& =\frac{-1}{\pi }\Im {\mathcal{G}}^{\mathrm{r}}(\omega )\\ G^{\mathrm{r}}(t)& =i\Theta (t)⟨{\hat{M}}^{-}(t){\hat{M}}^{+}(0)⟩\\ {\mathcal{G}}_{\eta }(\omega )& =-i{\int }_0^{-\infty }\mathrm{d}\omega \sum _n{\mathrm{e}}^{-\beta E_n}⟨n|{\hat{M}}^{-}{\mathrm{e}}^{i(\omega -\left(\hat{H}-E_n\right)+i\eta )t}{\hat{M}}^{+}|n⟩/Z\\ & =\sum _n{\mathrm{e}}^{-\beta E_n}⟨n|{\hat{M}}^{-}\frac{1}{\omega -\left(\hat{H}-E_n\right)+i\eta }{\hat{M}}^{+}|n⟩/Z\end{array}$$

The broadening $\eta$ is formally necessary to ensure the convergence of the Fourier integral. In practice, it corresponds to the unknown or neglected noise, whether intrinsic or due to the resolution limitations of the spectrometer.

Energy rediscretization

One problem that arises in the resolvent formulation is that the NMR peaks are usually very sharp. Discretizing the frequency axis with a very fine grid is computationally ineffective. Therefore, we perform several rounds of computing the spectral function. We start with a linear grid in frequency space and a rather large artificial broadening $\eta$. Then we iteratively rediscretize the frequency space in equal weight partitions of the total spectral function while reducing $\eta$ in each step until we reach the desired broadening. In this way, we obtain a non-linear adaptive grid with accumulation points at the spectral function peaks.

Program components

This chapter provides an overview of the different components of the HQS NMR Tool Python library.

• A molecule input is used to define parameters for NMR calculations.
• A function for setting up the spin Hamiltonian is available.
• Different solvers are accessible to do the actual NMR calculations.
• All the data created can be stored in different datatypes.
• A convenience function is provided for quick and easy spectra calculations.

Input structure for molecular data

In this section we will introduce the molecular data structure used as input in the HQS NMR Tool. It involves:

• Chemical name and molecular formula
• Chemical structures
• Conditions of the experiment/simulation
• NMR parameters

Some groups of molecules are already included in our internal data sets. In addition external data can be employed for setting up an NMR calculation.

In the following, the Pydantic classes related to molecular data as well as how to provide external data will be explained.

• Molecular data
• Data sets
• Text input

Representation in Python of molecular data structures

Inside the hqs_nmr_parameters package, the Pydantic MolecularData class has been implemented to describe a molecule. It contains the following attributes:

• name: The name of the molecule. When name is not provided in the YAML input, the name of the YAML file is used.
• isotopes: List containing pairs of an atom index and the associated isotope. Atom indices are associated with the order in which atoms appear in the chemical structure representations, starting by index 0.
• shifts: List containing pairs of an atom index and the associated chemical shift.
• j_couplings: List containing pairs of atomic indices and the associated J-coupling values. Note that atom index pairs are unique: if a value is provided for an atom pair (k, l), then no value is provided for pair (l, k).
• structures: Contains a dictionary with chemical structure representations. It accepts entries for a SMILES string ("SMILES"), a Molfile ("Molfile"), and an XYZ file ("XYZ"). Each value will correspond to a ChemicalStructure object. See below a full explanation of the chemical structure representations and the atom numeration.
• formula: The molecular formula of the molecule.
• temperature: An optional temperature definition.
• solvent: Name of the solvent. An empty string represents an unknown or undefined solvent, or the absence of a solvent.
• description: Optional further information.
• method_json: Stores a JSON serialization of computational method settings. An empty string indicates that the field is not applicable. Creating and interpreting the content is the responsibility of the user of the model.

This is best illustrated by an example from one of our available data sets:

from hqs_nmr_parameters.examples import molecules

parameters = molecules["C2H5OH"]

print(type(parameters))
print("Chemical name:", parameters.name)
print("Molecular Formula:", parameters.formula)
print("Type(s) of representations:", parameters.structures.keys())
print("Information about solvent:", parameters.solvent)
print("Shifts:", parameters.shifts)
print("###")
print(parameters.description)

<class 'hqs_nmr_parameters.code.data_classes.MolecularData'>
Chemical name: Ethanol
Molecular Formula: C2H6O
Type(s) of representations: dict_keys(['SMILES'])
Information about solvent: chloroform
Shifts: [(3, 1.25), (4, 1.25), (5, 1.25), (6, 3.72), (7, 3.72), (8, 1.32)]
###
1H parameters for ethanol in CDCl3.
Shifts from: https://doi.org/10.1021/om100106e
J-couplings estimated.

In this case, we are getting information for the ethanol molecule, for which we have stored a SMILES representation (check below for details) and according to the description experimental ¹H-NMR parameters in chloroform.

NMR parameters subset

The best way to check the NMR data is getting only the information necessary to perform an NMR calculation, i.e., a subset of parameters with the attributes isotopes, shifts, and j_couplings. Those can be obtained using the spin_system function of MolecularData:

from pprint import pprint
from hqs_nmr_parameters.examples import molecules

parameters = molecules["C2H5OH"]
nmr_parameters = parameters.spin_system()

print(type(nmr_parameters))
pprint(nmr_parameters.model_dump())

<class 'hqs_nmr_parameters.code.data_classes.NMRParameters'>
{'isotopes': [(1, 'H'), (1, 'H'), (1, 'H'), (1, 'H'), (1, 'H'), (1, 'H')],
 'j_couplings': [((0, 3), 7.0),
                 ((0, 4), 7.0),
                 ((1, 3), 7.0),
                 ((1, 4), 7.0),
                 ((2, 3), 7.0),
                 ((2, 4), 7.0)],
 'shifts': [1.25, 1.25, 1.25, 3.72, 3.72, 1.32]}

As we can see, nmr_parameters is an instance of the Pydantic NMRParameters class, where the active nuclei have been renumbered starting from 0. It is used as input for several functions to calculate an NMR spectrum. To perform an NMR simulation, we can do the following:

from hqs_nmr_parameters.examples import molecules
from hqs_nmr import calculate_spectrum

parameters = molecules["C2H5OH"]
nmr_parameters = parameters.spin_system()
print(type(nmr_parameters))  # NMRParameters
spectrum = calculate_spectrum(molecule_parms=nmr_parameters, frequency=400.0)
print(type(spectrum)) # Spectrum

<class 'hqs_nmr_parameters.code.data_classes.NMRParameters'>
<class 'hqs_nmr.datatypes.Spectrum'>

For getting a better insight into NMRParameters and the output object Spectrum have a look here.

Isotopes/atoms selection

MolecularData objects can contain data for several isotopes. However, we are often interested in creating a spin system for a given nuclei only. For example, if we want to simulate a ¹H-NMR spectrum but we also have ¹³C-NMR parameters in our data, it is possible either to select only ¹H using keep_nuclei(isotopes=["1H"]) or to drop ¹³C using drop_nuclei(isotopes=["13C"]). Let us take a look at this in more detail:

from pprint import pprint
from hqs_nmr_parameters.examples import molecules

parameters = molecules["CH3Cl_13C"]
pprint(parameters.isotopes)

drop_C = parameters.drop_nuclei(isotopes=["13C"])
keep_H = parameters.keep_nuclei(isotopes=["1H"])
print(drop_C == keep_H)

nmr_parameters_1H = drop_C.spin_system()
pprint(nmr_parameters_1H.model_dump())

[(0, Isotope(mass_number=13, symbol='C')),
 (2, Isotope(mass_number=1, symbol='H')),
 (3, Isotope(mass_number=1, symbol='H')),
 (4, Isotope(mass_number=1, symbol='H'))]
True
{'isotopes': [(1, 'H'), (1, 'H'), (1, 'H')],
 'j_couplings': [((0, 1), -10.8), ((0, 2), -10.8), ((1, 2), -10.8)],
 'shifts': [3.05, 3.05, 3.05]}

We should take into account that the dropping/keeping of isotopes needs to be done carefully. The ¹³C nucleus has a nuclear spin of 1/2 (as ¹H) and is NMR-activate but has a very low natural abundance, and the ¹³C-¹H coupling pattern is only barely visible in ¹H-NMR spectra. Therefore, it is common to simulate only ¹³ C-decoupled ¹H-NMR spectra. However, the coupling of ¹H with other isotopes such as ¹⁹F or ³¹P should not be ignored in order to get the correct peak pattern.

keep_nuclei can also take an atoms argument, which accepts a list of atom indices for which the NMR parameters are to be kept. In the case of drop_nuclei, specified nuclei can be dropped via atoms, but a keep_atoms argument prevents certain atoms from being dropped (useful in combination with isotopes).

Structure representations

As shown above a MolecularData object has the attribute structures, which is a dictionary that can accept three entries (keys): "SMILES", "Molfile" and "XYZ". The value of each of these entries is a ChemicalStructure object that stores chemical structure representations of the type defined in the key:

• SMILES (Simplified Molecular-Input Line-Entry System): Strings representing the connectivity of all non-hydrogen atoms in a molecule. They become laborious to understand for complex molecules.
• Molfiles: Text files with a two-dimensional (2D) structure of a molecule (skeletal representation). It could omit hydrogens. The number of hydrogen atoms is inferred from the atomic valencies, of the heavy atoms.
• XYZ files: Text files containing as first line an integer with the total number of atoms, followed by a comment line, and then atomic positions and chemical element symbols for all the atoms explicitly.

Connectivity and charge information can be extracted from SMILES strings or Molfiles, but not from XYZ files. More information about Molfiles and Strings can be found here.

The attributes of the ChemicalStructure class are:

• representation: Type of chemical structure representation present in the content attribute. It could be "SMILES", "Molfile" or "XYZ".
• content: It corresponds to the raw structure representation (as an string), i.e., a SMILES string or the content of an XYZ file or a Molfile.
• charge: Charge of the molecule.
• symbols: List of chemical element symbols for the full set of atoms.
• atom_map: As we have seen, 2D representations can omit hydrogens, this attribute contains information about how the full representation would map into this reduced representation. It is a list of the length of the molecule (full set of atoms), where the atom counting starts from zero and takes into account:
  • Each non-hydrogen atom maps onto the respective index in the reduced representation.
  • Each explicit hydrogen maps onto the index of its explicitly represented counterpart.
  • Each implicit hydrogen maps onto the reduced index of the respective backbone atom.

In the case of ethanol, a full structures representation (dictionary saved here in the variable ethanol_representation) may look like:

from hqs_nmr_parameters import ChemicalStructure

ethanol_representation = {
"XYZ": ChemicalStructure(representation="XYZ", content="9\n\nC       -0.88708900     0.17506400    -0.01253500\nC        0.46048900    -0.51551600    -0.04653500\nO        1.44296500     0.30726700     0.56557200\nH       -0.84747800     1.12776800    -0.55081700\nH       -1.65878200    -0.45332700    -0.46584200\nH       -1.17694400     0.40367600     1.01830600\nH        0.76871200    -0.72432800    -1.07546000\nH        0.41948600    -1.46207300     0.50017700\nH        1.47864000     1.14146800     0.06713500\n", charge=0, symbols=["C", "C", "O", "H", "H", "H", "H", "H", "H"], atom_map=[0, 1, 2, 3, 4, 5, 6, 7, 8]),
"Molfile": ChemicalStructure(representation="Molfile", content="\n     RDKit          2D\n\n  0  0  0  0  0  0  0  0  0  0999 V3000\nM  V30 BEGIN CTAB\nM  V30 COUNTS 3 2 0 0 0\nM  V30 BEGIN ATOM\nM  V30 1 C -1.299038 -0.250000 0.000000 0\nM  V30 2 C 0.000000 0.500000 0.000000 0\nM  V30 3 O 1.299038 -0.250000 0.000000 0\nM  V30 END ATOM\nM  V30 BEGIN BOND\nM  V30 1 1 1 2 CFG=3\nM  V30 2 1 2 3 CFG=3\nM  V30 END BOND\nM  V30 END CTAB\nM  END\n", charge=0, symbols=["C", "C", "O", "H", "H", "H", "H", "H", "H"], atom_map=[0, 1, 2, 0, 0, 0, 1, 1, 2]),
"SMILES": ChemicalStructure(representation="SMILES", content="CCO", charge=0, symbols=["C", "C", "O", "H", "H", "H", "H", "H", "H"], atom_map=[0, 1, 2, 0, 0, 0, 1, 1, 2])
}

Each of the entries corresponds to a ChemicalStructure object:

from pprint import pprint

smiles_representation = ethanol_representation["SMILES"]
print(type(smiles_representation)) # ChemicalStructure
pprint(smiles_representation.model_dump())

<class 'hqs_nmr_parameters.code.data_classes.ChemicalStructure'>
{'atom_map': [0, 1, 2, 0, 0, 0, 1, 1, 2],
 'charge': 0,
 'content': 'CCO',
 'representation': 'SMILES',
 'symbols': ['C', 'C', 'O', 'H', 'H', 'H', 'H', 'H', 'H']}

ethanol_representation["Molfile"].atom_map and ethanol_representation["SMILES"].atom_map will return:

[0, 1, 2, 0, 0, 0, 1, 1, 2]

In both cases, only the carbon and the oxygen atoms have been indicated explicitly. Therefore, the first three atoms are listed expressly (carbon atoms 0 and 1, and oxygen atom 2, i.e. the atom counting starts from zero) and the six following hydrogens are assigned to one of those backbone atoms. The full atomic indices associated with each reduced index can be obtained using the inverted_map method:

from pprint import pprint

smiles_representation = ethanol_representation["SMILES"]
print(smiles_representation.atom_map)
print(smiles_representation.inverted_map)

[0, 1, 2, 0, 0, 0, 1, 1, 2]
[{0, 3, 4, 5}, {1, 6, 7}, {8, 2}]

Hence, C (index = 0) is connected to H atoms 3, 4, 5, while C (index = 1) is connected to H atoms 6, 7, and the O (index = 2), to H 8.

However, ethanol_representation["XYZ"].atom_map will return:

[0, 1, 2, 3, 4, 5, 6, 7, 8]

Since all the atoms are explicitly provided in an XYZ format.

The ChemicalStructure class can also yield the chemical formula in Hill notation using the formula method. smiles_representation.formula will return:

'C2H6O'

Serialization (saving in a JSON file) of a MolecularData object and deserialization

We can save a MolecularData instance in a JSON file for future uses. To do so, employ the write_file method of the MolecularData class:

from hqs_nmr_parameters.examples import molecules

parameters = molecules["C2H5OH"]
parameters.write_file("etoh_molecular_data.json")

This JSON file can be easily loaded and validated against the MolecularData model using the read_file method:

from hqs_nmr_parameters import MolecularData

loaded_parameters = MolecularData.read_file("etoh_molecular_data.json")
print(type(loaded_parameters))

<class 'hqs_nmr_parameters.code.data_classes.MolecularData'>

Data sets

Molecular data for a group of molecules can be collected using the MolecularDataSet Pydantic class, which contains instances of type MolecularData. It is composed of two attributes:

• description: Summary of the content of the data set.
• dataset: Dictionary where the keys are identifiers for the molecules (e.g., molecule names) and the values correspond to a MolecularData object per molecule.

A list with the keys of the dataset can be obtained directly from the MolecularDataSet.keys property. This allows us to conveniently access the molecular data of each molecule using its key as string.

In oder to have a brief summary of the molecules belonging to a data set, we can use the get_names method. It retrieves a dictionary where the keys correspond to the keys of the dataset and the values are the chemical names. An equivalent dictionary providing the chemical formulas can be accessed via the get_formulas method.

Similar to keep_nuclei/drop_nuclei in MolecularData, keep_isotopes, drop_isotopes keeps/drops selected isotopes for all molecules in a data set. An extra description can be added with updated information about the set (whitespace for separation from the original description content must be included).

As in MolecularData, it is possible to save or load data sets thanks to the read_file and write_file methods that (de)serialize JSON files.

Data sets implemented in the hqs_nmr_parameters package will be explained in the follow.

Examples module

The first data set that is worth to mention is the examples module which has a set of molecule definitions encapsulated in the molecules MolecularDataSet object. This set can be accessed via:

from pprint import pprint
from hqs_nmr_parameters.examples import molecules

print(type(molecules)) # MolecularDataSet
# Keys of the data set:
print(molecules.keys)

<class 'hqs_nmr_parameters.code.data_classes.MolecularDataSet'>
['CH3Cl', 'limonene_DFT', '1,2,4-trichlorobenzene', 'Anethole', 'Artemisinin_exp', 'endo-dicyclopentadiene_DFT', 'CH3Cl_13C', 'C2H3CN', 'Artemisinin', 'camphor_DFT', 'C6H6', 'C10H8', 'Triphenylphosphine_oxide', 'H2CCF2', 'C2H5Cl', 'Androstenedione', 'Cinnamaldehyde', 'CHCl3_13C', 'C6H5NO2', 'C2H5OH', 'C2H6', 'C10H7Br', 'CHCl3', 'camphor_exp', 'exo-dicyclopentadiene_DFT', '1,2-di-tert-butyl-diphosphane', 'C2H3NC', 'cyclopentadiene_DFT', 'cis-3-chloroacrylic_acid_exp', 'C3H8']

Note that the content of this list of keys is just an example and might appear in a different order or with different entries depending on the installed version of hqs_nmr_parameters. The same holds for the dictionary of molecule names which can be obtained as follows:

pprint(molecules.get_names())

{'1,2,4-trichlorobenzene': '1,2,4-Trichlorobenzene',
 '1,2-di-tert-butyl-diphosphane': 'tert-Butyl(tert-butylphosphanyl)phosphane',
 'Androstenedione': 'Androstenedione',
 'Anethole': 'Anethole',
 'Artemisinin': 'Artemisinin',
 'Artemisinin_exp': 'Artemisinin',
 'C10H7Br': '2-Bromonaphthalene',
 'C10H8': 'Naphthalene',
 'C2H3CN': 'Acrylonitrile',
 'C2H3NC': 'Vinyl isocyanide',
 'C2H5Cl': 'Chloroethane',
 'C2H5OH': 'Ethanol',
 'C2H6': 'Ethane',
 'C3H8': 'Propane',
 'C6H5NO2': 'Nitrobenzene',
 'C6H6': 'Benzene',
 'CH3Cl': 'Chloromethane',
 'CH3Cl_13C': 'Chloromethane',
 'CHCl3': 'Chloroform',
 'CHCl3_13C': 'Chloroform',
 'Cinnamaldehyde': 'Cinnamaldehyde',
 'H2CCF2': '1,1-Difluoroethene',
 'Triphenylphosphine_oxide': 'Triphenylphosphine oxide',
 'camphor_DFT': 'Camphor',
 'camphor_exp': 'Camphor',
 'cis-3-chloroacrylic_acid_exp': 'cis-3-Chloroacrylic acid',
 'cyclopentadiene_DFT': 'Cyclopentadiene',
 'endo-dicyclopentadiene_DFT': 'endo-Dicyclopentadiene',
 'exo-dicyclopentadiene_DFT': 'exo-Dicyclopentadiene',
 'limonene_DFT': 'Limonene'}

In addition, if we want to have a feeling of the size of the molecules in the set, we could print their formula using the get_formulas method.

The full molecular definition for a given molecule can be loaded using its string key. Each entry of this data set includes a 2D representation (Molfile or SMILES string) of the molecule. Let us consider an example:

from pprint import pprint
from hqs_nmr_parameters.examples import molecules

# Obtain the MolecularData object for acrylonitrile
parameters = molecules["C2H3CN"]
# Print parameters
pprint(parameters.model_dump())

{'description': '1H parameters for acrylonitrile.\n'
                "Values were obtained from Hans Reich's Collection, NMR "
                'Spectroscopy.\n'
                'https://organicchemistrydata.org\n',
 'formula': 'C3H3N',
 'isotopes': [(3, (1, 'H')), (4, (1, 'H')), (5, (1, 'H'))],
 'j_couplings': [((3, 4), 0.9), ((3, 5), 11.8), ((4, 5), 17.9)],
 'method_json': '',
 'name': 'Acrylonitrile',
 'shifts': [(3, 5.79), (4, 5.97), (5, 5.48)],
 'solvent': '',
 'structures': {'Molfile': {'atom_map': [0, 1, 2, 3, 4, 5, 6],
                            'charge': 0,
                            'content': '\n'
                                       'JME 2022-02-26 Wed Sep 07 15:54:28 '
                                       'GMT+200 2022\n'
                                       '\n'
                                       '  0  0  0  0  0  0  0  0  0  0999 '
                                       'V3000\n'
                                       'M  V30 BEGIN CTAB\n'
                                       'M  V30 COUNTS 7 6 0 0 0\n'
                                       'M  V30 BEGIN ATOM\n'
                                       'M  V30 1 C 2.4249 2.1000 0.0000 0\n'
                                       'M  V30 2 C 3.6373 1.4000 0.0000 0\n'
                                       'M  V30 3 C 1.2124 1.4000 0.0000 0\n'
                                       'M  V30 4 H 0.0000 2.1000 0.0000 0\n'
                                       'M  V30 5 H 1.2124 0.0000 0.0000 0\n'
                                       'M  V30 6 H 2.4249 3.5000 0.0000 0\n'
                                       'M  V30 7 N 4.8497 0.7000 0.0000 0\n'
                                       'M  V30 END ATOM\n'
                                       'M  V30 BEGIN BOND\n'
                                       'M  V30 1 1 1 2\n'
                                       'M  V30 2 2 1 3\n'
                                       'M  V30 3 1 3 4\n'
                                       'M  V30 4 1 3 5\n'
                                       'M  V30 5 1 1 6\n'
                                       'M  V30 6 3 2 7\n'
                                       'M  V30 END BOND\n'
                                       'M  V30 END CTAB\n'
                                       'M  END\n',
                            'representation': 'Molfile',
                            'symbols': ['C', 'C', 'C', 'H', 'H', 'H', 'N']}},
 'temperature': None}

As we can see, data for setting up ¹H-NMR spectrum of the acrylonitrile molecule has been stored together with its Molfile.

To set up an NMR calculation we are only interested in some of the previous data. To retrieve it, use the spin_system method:

nmr_parameters = parameters.spin_system()
pprint(nmr_parameters.model_dump())

{'isotopes': [(1, 'H'), (1, 'H'), (1, 'H')],
 'j_couplings': [((0, 1), 0.9), ((0, 2), 11.8), ((1, 2), 17.9)],
 'shifts': [5.79, 5.97, 5.48]}

CHESHIRE module

In the cheshire module, one can find molecular data for molecules belonging to the CHESHIRE database. Five data sets (MolecularDataSet objects) have been created from this database depending on the NMR data:

• experimental_shifts_only: It includes the experimental shifts (for ¹³C and ¹H) of 105 molecules.
• calculated_full: It has theoretical NMR data for the 65 rigid molecules (molecules with only one conformer) of the previous set. Details of the calculations can be found under the description attribute of each item (see below).
• combined_full: It contains experimental shifts and theoretical J-couplings for the rigid molecules (in this case only 60 molecules due to incomplete number of shifts in experimental_shifts_only).
• The calculated and combined data sets are the reduced versions of the aforementioned sets and contain only the NMR data required for simulating ¹H-NMR spectra.

In addition, for non-expert users, we have included the alias molecules, which returns the combined set, i.e., ¹H-NMR data for the rigid molecules, with experimental shifts and calculated J-couplings.

These data sets can be imported from hqs_nmr_parameters.cheshire as: experimental_shifts_only, calculated_full, combined_full, calculated, and combined. Here, we will focus on the molecules set that it will be imported as cheshire_molecules to avoid confusion with the examples module.

from hqs_nmr_parameters.cheshire import molecules as cheshire_molecules

In the follow, we will retrieve some interesting information from the set, as a brief explanation of the set:

from pprint import pprint

pprint(cheshire_molecules.description)

('Experimental shifts and theoretical J-couplings for the rigid molecules of '
 "the Cheshire set, except for ['Cyclopropanone', 'Bicyclobutane', "
 "'Cyclopentanone', 'Fluorobenzene', 'Indole'] due to incompatible data.\n"
 "Shifts and couplings only for nuclei ['1H', '19F', '31P', '29Si'].")

Or the keys of the molecules that give access to the molecular data. For simplicity, they correspond to a string representation of integers that go from 1 to 105. For the molecule set, where only rigid molecules are included, some numbers are missing:

print(cheshire_molecules.keys)

['1', '2', '4', '5', '6', '9', '10', '11', '12', '13', '15', '16', '17', '18', '20', '23', '29', '30', '32', '33', '34', '36', '39', '41', '42', '44', '46', '47', '48', '49', '50', '51', '52', '54', '55', '59', '60', '61', '66', '68', '71', '73', '74', '75', '76', '77', '81', '84', '85', '86', '87', '88', '91', '92', '93', '95', '96', '99', '100', '105']

As before, the molecule names could be obtained using the get_names function. But here, we will focus on a single entry:

print(cheshire_molecules["1"].name)

'Dichloromethane'

In the description of each entry we find important information about how the NMR parameters were obtained.

print(cheshire_molecules["1"].description)

Geometries in chloroform at B97-3c.
Experimental shifts from CHESHIRE: http://cheshirenmr.info/.
J-couplings (gas-phase) at PBE/pcJ-3.
Parameters averaged over rotamers using permutations.

Each entry in the data set includes both a 2D (Molfile) and a 3D (XYZ) representation of the molecule.

pprint(cheshire_molecules["1"].structures)

{'XYZ': ChemicalStructure(representation='XYZ', content='5\n\nC       -0.00000000     0.00000000     0.77788868\nCl       0.00000000     1.49340832    -0.21847658\nCl       0.00000000    -1.49340833    -0.21847658\nH       -0.89835401     0.00000000     1.37677523\nH        0.89835401     0.00000000     1.37677523\n', charge=0, symbols=['C', 'Cl', 'Cl', 'H', 'H'], atom_map=[0, 1, 2, 3, 4]),
 'Molfile': ChemicalStructure(representation='Molfile', content='\n     RDKit          2D\n\n  0  0  0  0  0  0  0  0  0  0999 V3000\nM  V30 BEGIN CTAB\nM  V30 COUNTS 5 4 0 0 0\nM  V30 BEGIN ATOM\nM  V30 1 C 0.000000 -0.000000 0.000000 0\nM  V30 2 Cl 0.000000 1.500000 0.000000 0\nM  V30 3 Cl -0.000000 -1.500000 0.000000 0\nM  V30 4 H 1.500000 -0.000000 0.000000 0\nM  V30 5 H -1.500000 0.000000 0.000000 0\nM  V30 END ATOM\nM  V30 BEGIN BOND\nM  V30 1 1 2 1\nM  V30 2 1 3 1\nM  V30 3 1 1 4 CFG=3\nM  V30 4 1 5 1\nM  V30 END BOND\nM  V30 END CTAB\nM  END\n', charge=0, symbols=['C', 'Cl', 'Cl', 'H', 'H'], atom_map=[0, 1, 2, 3, 4])}

To access the NMR data:

pprint(cheshire_molecules["1"].spin_system().model_dump())

{'isotopes': [(1, 'H'), (1, 'H')],
 'j_couplings': [((0, 1), -5.171)],
 'shifts': [5.28, 5.28]}

Assignments module

The assignments module contains example data of other complex molecules.

Patchoulol

The patchoulol data set contains two molecules, the originally proposed structure for patchouli alcohol and the correct structure. We can access it as:

from hqs_nmr_parameters.assignments import patchoulol

To get an overview of the set, we could print its description:

print(patchoulol.description)

Theoretical <sup>1</sup>H-NMR data (shifts and J-couplings) for patchouli alcohol (patchoulol).
This set contains molecular data (with NMR parameters) related to the experimentally confirmed (correct) structure of patchoulol as well as for the structure initially (erroneous) attributed to patchoulol (see Scheme 1 of https://doi.org/10.1002/anie.200460864 for details).
The experimental <sup>1</sup>H-NMR spectrum of correct patchoulol is available at https://doi.org/10.13018/BMSE001312.

Only the two mentioned molecules are present in the set, we can access them via their keys:

print(patchoulol.keys)
print(patchoulol["correct"].name,"\n",patchoulol["erroneous"].name)

['correct', 'erroneous']
Patchouli alcohol
 4,10,11,11-Tetramethyltricyclo[5.3.1.01,5]undecan-10-ol

With this data, we can now use the HQS NMR Tool to simulate both spectra and see the differences between these two similar molecules as well as compare with the experimental spectrum.

Menthol isomers

The menthol_isomers data set is a collection of the four possible diastereomers of menthol (5-methyl-2-(propan-2-yl)cyclohexan-1-ol). With three chiral centers at positions 1, 2, and 5 (in IUPAC convention), there are the following eight possible structures:

• Menthol:

  • (+)-enantiomer, with stereocenters 1S, 2R, 5S.
  • (-)-enantiomer, with stereocenters 1R, 2S, 5R.

• Neomenthol:

  • (+)-enantiomer, with stereocenters 1S, 2S, 5R.
  • (-)-enantiomer, with stereocenters 1R, 2R, 5S.

• Isomenthol:

  • (+)-enantiomer, with stereocenters 1S, 2R, 5R.
  • (-)-enantiomer, with stereocenters 1R, 2S, 5S.

• Neoisomenthol:

  • (+)-enantiomer, with stereocenters 1R, 2R, 5R.
  • (-)-enantiomer, with stereocenters 1S, 2S, 5S.

Since enantiomers are not distinguishable by conventional NMR spectroscopy, there are four different possible NMR spectra. The given data set contains NMR parameters calculated with density functional theory (DFT) for one enantiomer of each pair and can be imported from the assignments module as menthol_isomers_full for ¹H- and ¹³C-NMR parameters or as menthol_isomers for only ¹H-NMR data.

The description gives an overview of the data set:

from hqs_nmr_parameters.assignments import menthol_isomers

print(menthol_isomers.description)

Calculated NMR parameters (only 1H) for all four stereoisomers of menthol.
Structures are (absolute stereochemistry indicated by chiral centers at positions 1, 2, and 5 in IUPAC convention):
(1S,2S,5R)-(+)-Neomenthol (SSR): data averaged over 3 conformers.
(1R,2S,5R)-(-)-Menthol (RSR): data averaged over 3 conformers.
(1S,2R,5R)-(+)-Isomenthol (SRR): data averaged over 6 conformers.
(1S,2S,5S)-(-)-Neoisomenthol (SSS): data averaged over 8 conformers.
Various experimental NMR spectra of (1S,2S,5R)-(+)-neomenthol are available at https://doi.org/10.13018/BMSE000498.

The keys of the structures in the data set can be listed as:

for key in menthol_isomers.keys:
    print(f"{key}: {menthol_isomers[key].name}")

SSR: (+)-Neomenthol (SSR)
RSR: (-)-Menthol (RSR)
SRR: (+)-Isomenthol (SRR)
SSS: (-)-Neoisomenthol (SSS)

For more information on the applied computational level of theory, please inspect the individual element descriptions with the description attribute.

This data can be used to simulate the NMR spectra of all diastereomers as explained earlier and compare them to experimental ones, e.g., to that of neomenthol available here. Due to the limited accuracy of DFT calculations, it is not always straightforward to identify the correct isomer if the exact structure of the experimental measurement is unknown, but the comparison with all four possibilities will provide valuable insights for structure elucidation.

Input of molecular NMR parameters via a YAML file

NMR parameters for molecules can be provided in a YAML file. A brief summary of relevant YAML features is provided before proceeding to more detailed explanations and examples.

• Dictionaries in YAML are defined as key: value pairs. Most commonly, a dictionary contains one key/value pair per line:

  key 1: value 1
  key 2: value 2


• value 1 is interpreted as a string, 1 is interpreted as an integer and 1.0 is interpreted as a floating-point number. To avoid problems with special characters (e.g., square brackets), strings may be enclosed in single or double quotes (they have different meanings, and single quotes should be preferred for a literal interpretation of the string).
• Lists can be defined over multiple lines as:

  - item 1
  - item 2


  Lists can also be enclosed in square brackets: [item 1, item 2, item 3]. The nested list [[1, 2, 3], [4, 5, 6]] is equivalent to:

  - [1, 2, 3]
  - [4, 5, 6]


• Indentation is part of the syntax: key/value pairs or list entries over multiple lines need to have the same number of leading spaces (no tabs).
• Comments start with a hash, #.

Definition of the molecular structure

Definition using SMILES

A molecular structure needs to be provided along with its NMR parameters in order to get a complete molecular data input. The YAML input accepts 2D structural representations, i.e., SMILES strings or Molfiles.

The simplest way to define a structure in the input file is through its SMILES representation. This is done using the key smiles, followed by a representation of the molecule. For acetic acid:

# Acetic acid defined using SMILES.
smiles: CC(=O)O

SMILES strings often contain square brackets [...]. In such cases, the string should be enclosed within quotes, '...', to avoid problems with the YAML parser.

Definition using a Molfile

Manual definition of increasingly large molecules using SMILES can be cumbersome. For example, the string representation of penicillin V would be:

smiles: 'CC1(C)S[C@@H]2[C@H](NC(=O)COc3ccccc3)C(=O)N2[C@H]1C(=O)O'

Instead, it is easier to draw a graphical representation such as the one below using one of many available proprietary or open source packages.

Such structural 2D representations are commonly stored in Molfiles. A molecule can be read from a Molfile by specifying the file name after the key molfile:

molfile: penicillin_v.mol

Note that the YAML input needs to contain either a Molfile or SMILES, but it is not possible to specify both at the same time. Both the V2000 and V3000 variants of the Molfile specification are supported in the input.

Hydrogens in the molecular structure

2D representations of molecular structures, whether as skeletal formulas or as SMILES, tend to omit hydrogens. Instead, the number of hydrogen atoms is inferred from the atomic valencies, especially those of the carbons. Any of the following three structures can be provided as a Molfile for the acrylamide molecule:

Where hydrogens are suppressed (not drawn out as separate atoms with a bond), their NMR parameters are specified through assignment to the respective skeletal atom. In the leftmost of the three structures shown above, it would be not possible to assign different parameters to the two protons in the CH₂ group. Instead, one of the two other structures shown above could be used to specify different parameters for those protons.

The only restriction with regards to hydrogens is that any skeletal atom can be connected either to suppressed or to stand-alone hydrogens, but not to a mixture of both. Thus, the following two structures would be rejected during input parsing:

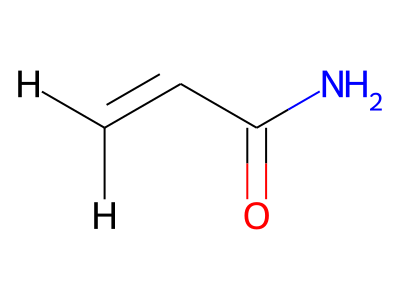

The structure to the left mixes a non-suppressed hydrogen with a suppressed "implicit" hydrogen (CH) on the carbon atom; the structure to the right mixes a non-suppressed hydrogen with a suppressed "explicit" hydrogen (NH) on the nitrogen atom.

Numbering of atoms

Atoms in the structural representation of the molecule are labelled with integers for the assignment of parameters. Indices can be counted starting from zero or from one. To avoid errors or misunderstandings, it is mandatory to specify a count from key in the input file, followed by either 0 or 1. The choice between those two options is entirely arbitrary.

An example for acetamide with atom counting starting from zero:

# Atom indices are 0, 1, 2, 3 in their order of appearance in the SMILES string.
smiles: CC(=O)N
count from: 0

An example for atom counting starting from one:

# Atom indices are 1, 2, 3, 4 in their order of appearance in the SMILES string.
smiles: CC(=O)N
count from: 1

The atoms in a molecule are indexed by their order of appearance in the Molfile. Acetamide may be represented by a Molfile with the following content:

     RDKit          2D

  4  3  0  0  0  0  0  0  0  0999 V2000
    0.0000    0.0000    0.0000 C   0  0  0  0  0  0  0  0  0  0  0  0
    1.2990    0.7500    0.0000 C   0  0  0  0  0  0  0  0  0  0  0  0
    1.2990    2.2500    0.0000 O   0  0  0  0  0  0  0  0  0  0  0  0
    2.5981   -0.0000    0.0000 N   0  0  0  0  0  0  0  0  0  0  0  0
  1  2  1  0
  2  3  2  0
  2  4  1  0
M  END

Counting the atoms starting from 1 (count from: 1), the appropriate indices are represented in the image below.

Chemical shifts

Providing chemical shifts will be illustrated using the nitrobenzene molecule as an example. Its molecular structure is contained in the file PhNO2.mol and shown in the picture below, including a numbering of its atoms.

All chemical shifts are specified under the key shifts. Additionally, the values need to be nested under keys representing isotopes, which contain the atomic mass number and the element symbol (e.g., 1H or 13C). For each isotope, the chemical shifts are provided in pairs of an atomic index and the associated value in ppm (parts per million):

# Structure with suppressed protons.
molfile: PhNO2.mol
count from: 0
shifts:
  # chemical shifts for protons in ppm
  1H:
    1: 8.23
    2: 7.56
    3: 7.71
    4: 7.56
    5: 8.23
  # chemical shifts for carbon-13 nuclei in ppm
  13C:
    0: 148.5
    1: 123.7
    2: 129.4
    3: 134.3
    4: 129.4
    5: 123.7

To assign chemical shifts for suppressed protons (that are not provided explicitly in the skeletal structure), the indices of the respective non-hydrogen atoms are used instead. All suppressed protons connected to the same atom are assigned an identical shift value.

If a Molfile contains hydrogens as standalone atoms, the chemical shifts are assigned to those protons using their respective atom indices. This is illustrated using the file PhNO2_allH.mol. Its structure is shown below.

In this example, the ¹H shifts need to be assigned to atoms 9-13. Assigning them to atoms 1-5, as in the previous example, would produce an error.

# Structure with suppressed protons.
molfile: PhNO2_allH.mol
count from: 0
shifts:
  # chemical shifts for protons in ppm
  1H:
    9: 8.23
    10: 7.56
    11: 7.71
    12: 7.56
    13: 8.23
  # chemical shifts for carbon-13 nuclei in ppm
  13C:
    0: 148.5
    1: 123.7
    2: 129.4
    3: 134.3
    4: 129.4
    5: 123.7

Indirect spin-spin coupling constants

Indirect spin-spin coupling constants are provided under the key J-couplings in the YAML file. Additionally, the coupling constant values need to be grouped together by isotopes. Keys for each combination of isotopes are combined as isotope1-isotope2: e.g., 1H-1H for coupling constants between two protons or 1H-13C for the associated heteronuclear coupling.

J-coupling constants in units of Hz for each combination of nuclei are provided as a list of lists with the following structure:

J-couplings:
  isotope1-isotope2:
    - [atom index 1, atom index 2, coupling constant in Hz]
    - [atom index 1, atom index 2, coupling constant in Hz]
    - [...]
  isotope1-isotope2:
    - [atom index 1, atom index 2, coupling constant in Hz]
    - [...]

The first atom index refers to the first isotope and the second atom index refers to the second isotope. As with shifts, values for suppressed hydrogens are assigned via the associated skeletal carbon or heteroatom. If multiple protons are connected to the same skeletal atom, they are assigned the same coupling constant. Inequivalent protons attached to the same skeletal atom, need to be specified explicitly as standalone atoms in the molecule definition, so that they can be referred to via their respective atom indices.

Examples

¹H parameters for propane with SMILES input

smiles: CCC
count from: 0
shifts:
  1H:
    0: 0.9
    1: 1.3
    2: 0.9
J-couplings:
  1H-1H:
    - [0, 1, 7.26]
    - [1, 2, 7.26]

The protons at the terminal CH₃ groups are assigned chemical shifts of 0.9 ppm each, and the protons of the central CH₂ group are given a value of 1.3 ppm. J-couplings between all protons of the neighboring CH₃ and CH₂ groups are assigned as 7.26 Hz. While an indirect spin-spin coupling interaction exists between equivalent protons within the CH₃ and CH₂ groups, it is not observed in the spectrum and the associated values are left out.

¹H parameters for acrylonitrile

The structure of acrylonitrile is provided as a Molfile in acrylonitrile.mol. Its depiction is shown below.

Since protons 4 and 5 are inequivalent, they are specified as standalone atoms with different parameters. In addition, hydrogen 6 is represented as a standalone atom, though suppressing it would also be an equally valid choice.

molfile: acrylonitrile.mol
count from: 1
shifts:
  1H:
    4: 5.79  # H(trans)
    5: 5.97  # H(cis)
    6: 5.48  # H(gem)
J-couplings:
  1H-1H:
    - [4, 5, 0.9]
    - [4, 6, 11.8]
    - [5, 6, 17.9]

Combined ¹H and ¹³C parameters for chloromethane

To illustrate the definition of heteronuclear coupling constants, the following example shows parameters for ¹³C-enriched chloromethane. The parameters include the shifts of the three protons and the ¹³C nucleus, as well as the coupling constants between these nuclei.

# CH3Cl with 13C, the hydrogens inside square brackets are implicit.
smiles: '[13CH3]Cl'
# C will have index 1 and Cl will have index 2
count from: 1
shifts:
  # Shifts of the three protons.
  1H:
    1: 3.05
  # Shift of carbon-13 in the molecule.
  13C:
    1: 25.6
J-couplings:
  # Coupling between the three protons (would normally not be observed).
  1H-1H:
    - [1, 1, -10.8]
  # Coupling between the three protons and the 13C atom.
  1H-13C:
    - [1, 1, 150.0]

Stored YAML files

For the molecules included in the examples module of the hqs_nmr_parameters package, YAML input files (and Molfiles when indicated as molecular structure) are available in the file system. To access them, use the following command, taking into account that each YAML file takes the name of its key in the data set. For acrylonitrile (with key "C2H3CN"), we will have:

from pathlib import Path
from hqs_nmr_parameters import examples

identifier = "C2H3CN"
acrylonitrile_yaml = Path(examples.__file__).parent.joinpath("parameters", identifier + ".yaml")
print(acrylonitrile_yaml.read_text())

name: Acrylonitrile
molfile: C2H3CN.mol
count from: 1
shifts:
  1H:
    4: 5.79  # H(trans)
    5: 5.97  # H(cis)
    6: 5.48  # H(gem)
J-couplings:
  1H-1H:
    - [4, 5, 0.9]
    - [4, 6, 11.8]
    - [5, 6, 17.9]
description: |
  1H parameters for acrylonitrile.
  Values were obtained from Hans Reich's Collection, NMR Spectroscopy.
  https://organicchemistrydata.org

As we have seen, to get this data as MolecularData instance:

from hqs_nmr_parameters.examples import molecules

identifier = "C2H3CN"
parameters = molecules[identifier]
print(parameters.shifts)

[(3, 5.79), (4, 5.97), (5, 5.48)]

Therefore, even if the atom counting in the YAML file starts at 1, the numbering in MolecularData always starts at 0.

Reading and processing YAML input files

In the HQS NMR Tool, a YAML file containing NMR parameters is parsed using the read_parameters_yaml function from the hqs_nmr_parameters package:

from hqs_nmr_parameters import read_parameters_yaml

parameters = read_parameters_yaml("input_file.yaml")

The read_parameters_yaml function can read the following keywords from a YAML file:

• name: An optional name of the molecule.
• shifts: Chemical shifts in format {isotope: {index: value}}.
• j_couplings/J-couplings: J-coupling values in format {isotope1-isotope2: [[index1, index2, value], ...]}.
• count from/count_from: Specifies whether to count atomic indices starting from zero or from one.
• smiles: SMILES string of the molecule (better enclosed in quotation marks).
• molfile: Path to a Molfile with the molecular structure.
• molblock: Compressed Molfile content (not in clear text).
• temperature: Temperature in K.
• solvent: Name of the solvent.
• description: Additional further description.

parameters is an instance of the Pydantic MolecularData class.

Spin Hamiltonian

Spin Hamiltonians are constructed by calling the function liquid_hamiltonian from the hqs_nmr_parameters package, which is meant to be used for organic molecules in a liquid. It accounts for terms due to:

• Zeeman interaction (of each nucleus with the static magnetic field)
• Isotropic chemical shifts
• Indirect spin-spin scalar couplings (J-couplings)

Optionally, the flag with_zeeman of liquid_hamiltonian may be set to False. In that case, the function omits the pure Zeeman term, but includes the chemical shifts and the J-couplings.

The units of the Spin Hamiltonian conform to the conventions in the field of NMR. In consequence, the Hamiltonian is in angular frequency units of radians per second. To convert to Hz, the Hamiltonian needs to be divided by 2 $\pi$. To convert to energy units (Joule), the Hamiltonian needs to be multiplied with the reduced Planck constant ($\hslash$).

How to set up a Spin Hamiltonian

We need to make use of NMRParameters objects, which are returned by the spin_system method of MolecularData objects, which store molecular parameters for individual molecules and indicate the static magnetic field in Tesla. For the ethanol molecule, we can access its molecular data from the examples module as:

from pprint import pprint
from hqs_nmr_parameters.examples import molecules
from hqs_nmr_parameters import liquid_hamiltonian

parameters = molecules["C2H5OH"]
nmr_parameters = parameters.spin_system()
spin_hamiltonian = liquid_hamiltonian(
    isotopes=nmr_parameters.isotopes,
    shifts=nmr_parameters.shifts,
    Jvalues=dict(nmr_parameters.j_couplings),
    field=11.7)
pprint(spin_hamiltonian)

SpinHamiltonianSystem(6){
0Z: -1.565006405055561e9,
1Z: -1.565006405055561e9,
2Z: -1.565006405055561e9,
3Z: -1.5650102706165495e9,
4Z: -1.5650102706165495e9,
5Z: -1.5650065146058724e9,
0X3X: 1.0995574287564276e1,
0Y3Y: 1.0995574287564276e1,
0Z3Z: 1.0995574287564276e1,
0X4X: 1.0995574287564276e1,
0Y4Y: 1.0995574287564276e1,
0Z4Z: 1.0995574287564276e1,
1X3X: 1.0995574287564276e1,
1Y3Y: 1.0995574287564276e1,
1Z3Z: 1.0995574287564276e1,
1X4X: 1.0995574287564276e1,
1Y4Y: 1.0995574287564276e1,
1Z4Z: 1.0995574287564276e1,
2X3X: 1.0995574287564276e1,
2Y3Y: 1.0995574287564276e1,
2Z3Z: 1.0995574287564276e1,
2X4X: 1.0995574287564276e1,
2Y4Y: 1.0995574287564276e1,
2Z4Z: 1.0995574287564276e1,
}

The output is an instance of the SpinHamiltonianSystem class, i.e., a representation of the system of spins as defined in struqture_py, a dependency of the HQS NMR Tool.

Datatypes

Datatypes in NMR

Molecular NMR parameters, spectra and calculation results are stored in Python objects in the HQS NMR Tool. These data structures are as follows.

NMRParameters

The NMRParameters Pydantic datatype is defined in the hqs_nmr_parameters repository and holds the reduced set of molecular parameters required for an NMR calculation,

• shifts (list[float]): List of chemical shifts in ppm for every nucleus in the system that has NMR parameters.
• isotopes (list[Isotope]): List of isotopes for every nucleus, in the same ordering as shifts. The NamedTuple Isotope has the two attributes mass_number and symbol.
• j_couplings (list[tuple[tuple[int, int], float]]): List containing pairs of atomic indices and the associated J-coupling values. The atomic indices refer to the ordering in the shifts and isotopes lists.

This data is accessed as attributes of the class instance:

from hqs_nmr_parameters.examples import molecules

nmr_parameters = molecules["C10H7Br"].spin_system()

print(type(nmr_parameters))        # NMRParameters
print(nmr_parameters.shifts)
print(nmr_parameters.isotopes)
print(nmr_parameters.j_couplings)

NMRParameters objects are used as an input when calculating a spectrum using the calculate_spectrum method.

Spectrum

The Spectrum datatype holds an NMR spectrum comprising

• half_width_ppm (float): Artificial broadening in ppm,

• omegas (np.ndarray[float]): Frequencies in ppm,

• values (np.ndarray[float]): Individual spin contributions to the spectrum. The values are a $N_{\mathrm{spin}}\times N_{\mathrm{omegas}}$ numpy array where each row holds the contribution of the corresponding spin, i.e.:

spectrum.values[0,:]

holds the contribution of the first spin (index 0). The total spectrum that would be measured experimentally can be calculated using

np.sum(spectrum.values, axis=0)

The Spectrum object is per default returned by the calculate_spectrum method used to calculate NMR spectra.

Greensfunction

The Greensfunction datatype holds the complex Green's function, of which the imaginary part corresponds to the NMR spectral function.

• half_width_ppm (float): Artificial broadening in ppm,

• omegas (np.ndarray[float]): Frequencies in ppm,

• values (np.ndarray[complex]): Individual spin contributions to the Green's function. The values are a $N_{\mathrm{spin}}\times N_{\mathrm{omegas}}$ numpy array where each row holds the contribution of the corresponding spin, i.e.:

spectrum.values[0,:]

holds the contribution of the first spin (index 0). The total spectrum that would be measured experimentally can be calculated using

np.sum(spectrum.values, axis=0)

The Greensfunction object is returned by the calculate_spectrum method, if the flag calc_greens_function is set to True.

Serialization (Saving and Loading)

The datatypes described above have a common interface for data serialization. There exists a function called to_json common to all classes, that can take a class object and a file name (with or without the full path) to store the data as a JSON file. For example, if we have an object called spectrum of the data class Spectrum and want to save it as specrum_data.json:

from hqs_nmr.datatypes import to_json

to_json(spectrum, "spectrum_data.json")

There is also the inverse method from_json to load the data again. It needs as additional information the type of class the JSON file has stored, e.g.,

from hqs_nmr.datatypes import from_json, Spectrum

spectrum = from_json(Spectrum, "spectrum_data.json")

NMR spectra calculations

For most use cases the calculate_spectrum function should be sufficient to perform NMR spectra calculations. The function takes as input a NMRParameters object and the spectrometer frequency and determines automatically the spectral function. By default, it uses the spin_dependent_cluster_nmr_solver to evaluate the spectrum. It is exact up to the maximum cluster size (set by default to 10) and for larger systems still extremely accurate, while also being very fast. It returns the spectrum as a Spectrum object, which contains the broadening parameter in ppm half_width_ppm, the frequencies omegas at which the spectral function was evaluated, as well as the spin-dependent contributions to the spectral function stored in values.

For a quick introduction to this method check out the example notebooks. You can obtain them as explained in the getting started section.

calculate_spectrum accepts the following arguments:

molecule_parms: datatypes.NMRParameters

The molecular isotopes, shifts and J-coupling values.

frequency: float

Spectrometer frequency for ¹H. Proportional to the static magnetic field along z-axis: $f={\gamma }_{1H}\frac{B_z}{2\pi }$

gyromagnetic_ratios: Optional[dict[tuple[int, str], float]] = None

Dictionary of gyromagnetic ratios in radians per second per Tesla.

homoisotope: tuple[int, str] = (1, "H")

Symbol of the isotope to define the frequency w=gamma*field of the rotating frame. Defaults to (1, "H").

solver_str: str = "spin_dependent_cluster_nmr_solver"

Solver to be used for calculation. Options are:

• "direct_nmr_solver"
• "direct_nmr_solver (conserved)"
• "cluster_nmr_solver"
• "cluster_nmr_solver (symmetry)"
• "spin_dependent_cluster_nmr_solver"
• "spin_dependent_cluster_nmr_solver (symmetry)"
• "automated_solver"

estimate_solver_str: Optional[str] = None

Solver to be used for initial spectrum estimation. If None, solver_str is used. Options: See solver_str.

sample_factor: float = 1.0

Factor to change the number of omega points. Defaults to 1.

frequency_window_ppm: Optional[tuple[int, int]] = None

Optional upper and lower bound of user defined frequency window in ppm.

solver_kwargs: Optional[Dict[str, Any]] = None

Optional arguments passed to the solver as **kwargs.

half_width: Optional[float] = None

The artificial broadening or intrinsic line width to use in ppm. If None the solver will choose a broadening based on the J-coupling values in the molecule.

calc_greens_function: bool = False

Flag that indicates whether the Green's function should be calculated rather than the spectral function.

Solver

The HQS NMR Tool comes with a variety of solvers to calculate the NMR spectrum $$A(\omega )={\int }_{-\infty }^{\infty }\text{tr}\left[{\hat{M}}^{+}(t){\hat{M}}_{-}(0)\rho (0)\right]e^{-i\omega t-\eta |t|}\mathrm{dt},$$ where $M^{\pm }={\sum }_l{\gamma }_l{\hat{S}}_l^{\pm }$ is the total spin weighted by the gyromagnetic factors, $\rho$ is the density matrix, and $\eta$ is a convergence factor for the Fourier transform. $\eta$ can be understood in terms of nuclear spins coupling to very small noise leading to a broadening of NMR peaks in the signal or as the intrinsic resolution of the spectrometer. See the chapter Background for details on the general math behind all solvers and on NMR.

Typically, though, one does not directly interface with a specific solver, but just use the convenience function calculate_spectrum to calculate NMR spectra.

All currently implemented solvers in the HQS NMR tool are frequency solvers and offer an identical base interface but differ by additional solver arguments.

Frequency solvers

Frequency solvers calculate the spectrum $A(\omega )$ in the frequency domain and avoid the FFT that would be required for time solvers. These solvers calculate N correlation functions for given frequency points and return them as a $N\times N_{\omega }$ numpy array where $N$ is the number of spins and $N_{\omega }$ the number of frequency points, $$C_j(\omega )=\int \text{Tr}({\hat{M}}_j^{+}(t_k){\hat{M}}^{-}{\rho }_0)e^{-i\omega t-\eta |t|}\mathrm{dt}.$$ Here, ${\hat{M}}^{+}$ is the total spin creation operator scaled by the gyromagnetic factor ${\gamma }_j$. The full NMR signal is the sum of spin-resolved signals, $$A(\omega )=\sum _j{C}_j(\omega ).$$

Frequency solver interface

All frequency solvers take the following positional arguments plus additional solver-dependent options:

frequency_solver(
    calc_greens_function: bool,
    hamiltonian: SpinHamiltonianSystem,
    gyromagnetic_ratios: np.ndarray[tuple[Any,], np.dtype[np.floating]],
    omegas: np.ndarray[tuple[Any,], np.dtype[np.floating]],
    **kwargs
)

All frequency solvers return a $N\times N_{\omega }$ numpy array where $N$ is the number of spins and $N_{\omega }$ the number of frequency points.

calc_greens_function: bool If set to True, the Green's function rather than the spectrum is calculated. The spectrum can be obtained as the imaginary part of the Green's function.

hamiltonian: struqture_py.spins.SpinHamiltonianSystem The spin-Hamiltonian in the rotating frame given as a struqture.spins.SpinHamiltonianSystem. The HQS NMR Tool provides libraries to obtain the Hamiltonian from molecule inputs, see Molecule input. Arbitrary Hamiltonians can be generated in Python:

from struqture_py import spins

number_spins = 2
coupling = 1.0
shift = 1.0

hamiltonian = spins.SpinHamiltonianSystem(number_spins)
# Generate nearest neighbor xx + yy interaction
for i in range(number_spins - 1):
    hamiltonian.add_operator_product(spins.PauliProduct().x(i).x(i + 1), coupling)
    hamiltonian.add_operator_product(spins.PauliProduct().y(i).y(i + 1), coupling)
# Generate Zeeman terms
for i in range(number_spins ):
    hamiltonian.add_operator_product(spins.PauliProduct().z(i), shift)

gyromagnetic_ratios: np.ndarray List of gyromagnetic ratios for the spins included in the simulation. Used to obtain the operators $${\hat{M}}^{\pm }=\sum _l{\gamma }_l{\hat{S}}_l^{\pm }$$

omegas: np.ndarray Numpy array of frequency points the spectrum should be evaluated at.

Available solvers

The HQS NMR tool comes with the following frequency solvers:

• Direct solver
• Cluster solver
• Spin dependent cluster solver
• Automated solver (experimental)

Direct solver

Introduction

Calculates transitions in a 1D NMR spectrum through a direct resolvent approach. The solver may be specified as "direct_nmr_solver" or "direct_nmr_solver (conserved)". Here, the second option allows the solver to exploit $I_z$-conservation, which improves the runtime as well as the maximum system size that can be evaluated.

The method takes a struqture Hamiltonian (in rotating frame) and computes the spectral functions for the ${\hat{M}}^{-}{\hat{M}}^{+}$ function, where $\hat{M}$ corresponds to the spin operator including the gyromagnetic factors gamma, ${\hat{M}}^{\alpha }={\sum }_{\ell }{\gamma }_{\ell }{\hat{I}}_{\ell }^{\alpha }$, ${\hat{I}}^{\alpha }={\hat{S}}^{\alpha }/\hslash$.

The spectral function is evaluated via the resolvent representation detailed in chapter math. This is done through brute-force diagonalization of either the full Hamiltonian or each block associated with an $S_z$ quantum number in the conserved approach. It returns a spin-resolved array of spectral functions as a $N\times N_{\omega }$ numpy array where $N$ is the number of spins and $N_{\omega }$ the number of frequency points.

Math

$$\begin{array}{rl}{\mathcal{G}}_{\eta }(\omega )& =\sum _n{\mathrm{e}}^{-\beta E_n}⟨n|{\hat{M}}^{-}\frac{1}{\omega -\left(\hat{H}-E_n\right)+i\eta }{\hat{M}}^{+}|n⟩/Z\\ & \\ {\mathcal{G}}_{\eta }(\ell ,\omega )& =\sum _n{\mathrm{e}}^{-\beta E_n}{\gamma }_{\ell }⟨n|{\hat{I}}_{\ell }^{-}\frac{1}{\omega -\left(\hat{H}-E_n\right)+i\eta }{\hat{M}}^{+}|n⟩/Z\end{array}$$

Extra Arguments

eta: float Artificial broadening.

The broadening $\eta$ is formally necessary to ensure the convergence of the Fourier integral. In practice it corresponds to the unknown or neglected noise, being intrinsic to the resolution limitation of the spectrometer. Note that the complete spectral function is positive, $A(\omega )\ge 0$. However, the spin resolved spectral functions can be negative.

beta: float Inverse temperature

$\beta =1/(k_{\mathrm{B}}T)$.

Due to the low energy of nuclear spin excitations the temperature in real measurements is practically infinite, i.e. $\beta =0$. For theoretical studies or comparison to very low temperature NMR measurements one can apply finite temperatures.

threshold_matrix_elements: float

In the final evaluation, many matrix elements $⟨n|I_l^{+}|m⟩$ evaluate to zero and hence do not need to be included, when performing the summation for each frequency. We therefore remove all matrix elements below this threshold beforehand.

Cluster solver

Introduction

Similar to the direct solver, the cluster solver calculates transitions in a 1D NMR spectrum through the resolvent approach. However, it can calculate the spectral function for much larger molecules, as it automatically divides the molecule into small clusters that are only weakly coupled and solves them as being independent. The solver can either be specified as "cluster_nmr_solver" or "cluster_nmr_solver (symmetry)". If the symmetry version is chosen, the solver is allowed to exploit local SU(2) symmetry. While this does allow to go to larger system sizes, it is not necessarily faster for small molecules, due to additional computational overhead in the evaluation.

Although this is the fastest solver for large molecules, it can give inaccurate results for spin contributions of spins at the boundary between two clusters. To improve accuracy, check out the spin dependent cluster solver.

The setup is the same as for the direct solver. Meaning based on a struqture Hamiltonian input, the spectral function is computed from the correlation function ${\hat{M}}^{-}{\hat{M}}^{+}$, where $\hat{M}$ corresponds to the spin operator including the gyromagnetic factors gamma, ${\hat{M}}^{\alpha }={\sum }_{\ell }{\gamma }_{\ell }{\hat{I}}_{\ell }^{\alpha }$, ${\hat{I}}^{\alpha }={\hat{S}}^{\alpha }/\hslash$.

Math

As for the direct solver the resolvent representation (see chapter math) is used. The correlation function is given as

$$\begin{array}{rl}{\mathcal{G}}_{\eta }(\omega )& =\sum _n{\mathrm{e}}^{-\beta E_n}⟨n|{\hat{M}}^{-}\frac{1}{\omega -\left(\hat{H}-E_n\right)+i\eta }{\hat{M}}^{+}|n⟩/Z\\ & \\ {\mathcal{G}}_{\eta }(\ell ,\omega )& =\sum _n{\mathrm{e}}^{-\beta E_n}{\gamma }_{\ell }⟨n|{\hat{I}}_{\ell }^{-}\frac{1}{\omega -\left(\hat{H}-E_n\right)+i\eta }{\hat{M}}^{+}|n⟩/Z\end{array}$$

However, it is only evaluated on each individual cluster. The clusters are specified in multiple steps:

Partitioning

First, a partitioning of the system into strictly independent parts (from now on called partitions) is performed. This is achieved by diagonalizing the Laplacian matrix based on the J-coupling matrix of the Hamiltonian. By counting the number of zero eigenvalues, the number of partitions in the system can be easily determined. To identify them explicitly, one can use an analysis of the Fiedler vector, which is normally defined as the eigenvector corresponding to the second-lowest eigenvalue. In an ideal case a partition is then given by the zero entries in the vector leading to a bipartitioning of the system. By recursively applying this method on each of the two identified partitions, one can split the system into all of its individual parts. However, special care has to be taken as there can be no zeros in the Fiedler vector although the number of zero eigenvalues is larger than one. This can happen as the Fiedler vector is actually not well-defined if the zero eigenvalues, which are also the lowest eigenvalues, are degenerate. In these cases a linear combination of two eigenvectors with zero eigenvalues can be created such that at least one entry of the resulting vector is zero. This vector can then be used as the Fiedler vector instead. After performing the partitioning, each partition is treated independently, however since these are truly non interacting parts of the system, no approximation was made here.

Symmetry Considerations

As a next stage, if the symmetry option was specified, symmetric groups are identified in each partition. A symmetric group is defined as a group of spins, where each individual spin has the same chemical shift and couples in the exact same way to the rest of the system. Identifying these groups is advantageous, as one can combine them into higher order spin representations. Exploiting the SU(2) symmetry then leads to a significant reduction in computational space. As an example consider propane, which has eight hydrogens. By identifying all symmetrically coupled groups in this molecule, the number of spins can be reduced to two. One being the CH2 group which has a combined spin representation of one and the second being the two methyl groups each representing a spin 3/2 and adding up to a total spin representation of spin 3.

Clustering

Once all of the groups in a partition have been identified, a final clustering of the partition into its weakly coupling parts can be performed. Note that up to here, everything was still exact and approximations are only introduced through clustering. To perform the clustering lower triangular matrices are created, representing each partition as a weighted graph with the spins being the nodes and the edge weights being ${\Delta }_{x,y}$ based on assumptions from perturbation theory:

$${\Delta }_{x,y}=\frac{J_{xy}^2}{({\gamma }_x{\delta }_x-{\gamma }_y{\delta }_y)B}$$

Where $J_{x,y}$ are the entries in the J coupling matrix connecting sites x and y, $\gamma$ the gyromagnetic ratio, $\delta$ the chemical shift and $B$ the magnetic field strength. After defining this graph, a Stör-Wagner splitting of the graph is used to obtain individual clusters. Note that the groups which were previously identified in the partition are always preserved by this splitting as they are treated as a single spin.

Extra Arguments

eta: float Artificial broadening.

The broadening $\eta$ is formally necessary to ensure the convergence of the Fourier integral. In practice it corresponds to the unknown or neglected noise, being intrinsic to the resolution limitation of the spectrometer. Note that the complete spectral function is positive, $A(\omega )\ge 0$. However, the spin-resolved spectral functions can be negative.

beta: float Inverse temperature

$\beta =1/(k_{\mathrm{B}}T)$.

Due to the low energy of nuclear spin excitations the temperature in real measurements is practically infinite, i.e. $\beta =0$. For theoretical studies or comparison to very low temperature NMR measurements one can apply finite temperatures.

Note: Currently, only the case $\beta =0$ is implemented.

max_cluster_size: int Maximum cluster size.

This has to be set according to restraints imposed by the computational resources available. Note that symmetric groups are viewed as one site, with an effective number of sites corresponding to the spin representation of the group.

tolerance_couplings: float Tolerance for the J-coupling when identifying symmetry groups

When the symmetry groups are identified, the coupling to the outside does not have to be perfectly symmetric, as there might be small deviations in the input parameters. Hence this parameter allows to define a tolerance for the J-coupling until which spins are assumed to couple symmetric.

tolerance_shifts: float Tolerance for the chemical shifts when identifying symmetry groups

Similarly to the tolerance for the J-couplings the chemical shifts don't have to be perfectly identical. This parameter allows in the same way to define a tolerance until which they are assumed to be the same.

delta: float

Small parameter to avoid division by zero, when creating the weight matrix for the clustering.

threshold_matrix_elements: float

In the final evaluation a lot of matrix elements $⟨n|I_l^{+}|m⟩$ evaluate to zero and hence do not need to be included, when performing the summation for each frequency. We therefore remove all matrix elements below this threshold beforehand.

verbose: int Verbosity of output

Specifically when set to one, the partitioning, as well as the identified groups and the clustering is printed. For further debug information it may be set higher.

Spin-dependent cluster solver

Introduction

The solver can either be specified as "spin_dependent_cluster_nmr_solver" or "spin_dependent_cluster_nmr_solver (symmetry)". If the symmetry version is used, the solver is allowed to exploit local SU(2) symmetry. We refer to the cluster_nmr_solver for details, as the basic solver setup is very similar. The main difference is that the solver does not just split the molecule into independent parts, but identifies, for each spin, the spins that are most strongly coupled to it and groups them into one cluster, which is solved to find the individual spin contributions.

Although this is the most accurate approximate solver for large molecules, it has a slightly longer runtime as the cluster_nmr_solver. However, the gain in accuracy though typically justifies the small computational overhead, especially since often cluster sizes can be chosen smaller.

The setup is the same as for the direct solver. That means that based on a struqture Hamiltonian input, the spectral function is computed from the correlation function ${\hat{M}}^{-}{\hat{M}}^{+}$, where $\hat{M}$ corresponds to the spin operator including the gyromagnetic factors gamma, ${\hat{M}}^{\alpha }={\sum }_{\ell }{\gamma }_{\ell }{\hat{I}}_{\ell }^{\alpha }$, ${\hat{I}}^{\alpha }={\hat{S}}^{\alpha }/\hslash$.

Math

As for the direct and cluster solver the resolvent representation (see chapter math) is used. The correlation function is given as

$$\begin{array}{rl}{\mathcal{G}}_{\eta }(\omega )& =\sum _n{\mathrm{e}}^{-\beta E_n}⟨n|{\hat{M}}^{-}\frac{1}{\omega -\left(\hat{H}-E_n\right)+i\eta }{\hat{M}}^{+}|n⟩/Z\\ & \\ {\mathcal{G}}_{\eta }(\ell ,\omega )& =\sum _n{\mathrm{e}}^{-\beta E_n}{\gamma }_{\ell }⟨n|{\hat{I}}_{\ell }^{-}\frac{1}{\omega -\left(\hat{H}-E_n\right)+i\eta }{\hat{M}}^{+}|n⟩/Z\end{array}$$

However, for each spin the evaluation is restricted to a spin-dependent cluster, which is identified in multiple steps:

Partitioning

First, a partitioning of the system into strictly independent parts (from now on called partitions) is performed. For details you may check here.

Symmetry Considerations

As a next stage, if the symmetry option was specified, symmetric groups are identified in each partition. Again details can be found here.

Clustering

To perform the clustering, we define as in the cluster solver lower triangular matrices for each partition representing a weighted graph with the spins being the nodes and the edge weights ${\Delta }_{x,y}$ based on assumptions from perturbation theory:

$${\Delta }_{x,y}=\frac{J_{xy}^2}{({\gamma }_x{\delta }_x-{\gamma }_y{\delta }_y)B}$$

Here, $J_{x,y}$ are the entries in the J-coupling matrix connecting sites x and y, $\gamma$ the gyromagnetic ratio, $\delta$ the chemical shift and $B$ the magnetic field strength. We now use this graph to identify for each spin a cluster of the most strongly coupled spins. After having identified them for each spin we additionally check, whether multiple spins are associated with the same cluster and if so only evaluate such a cluster once.

Extra Arguments

eta: float Artificial broadening.

The broadening $\eta$ is formally necessary to ensure the convergence of the Fourier integral. In practice it corresponds to the unknown or neglected noise, being intrinsic for the resolution limitation of the spectrometer. Note that the complete spectral function is positive, $A(\omega )\ge 0$. However, the spin resolved spectral functions can be negative.

beta: float Inverse temperature.

$\beta =1/(k_{\mathrm{B}}T)$.

Due to the low energy of nuclear spin excitations the temperature in real measurements is practically infinite, i.e. $\beta =0$. For theoretical studies or comparison to very low temperature NMR measurements one can apply finite temperatures.

Note: Currently only the case $\beta =0$ is implemented.

max_cluster_size: int Maximum cluster size.

This has to be set according to restraints imposed by the computational resources available. Note that symmetric groups are viewed as one site, with an effective number of sites corresponding to the spin representation of the group.

tolerance_couplings: float Tolerance for the J-coupling when identifying symmetry groups.

When the symmetry groups are identified, the coupling to the outside does not have to be perfectly symmetric, as there might be small deviations in the input parameters. Hence this parameter allows to define a tolerance for the J-coupling until which spins are assumed to couple symmetric.

tolerance_shifts: float Tolerance for the chemical shifts when identifying symmetry groups.

Similarly to the tolerance for the J-couplings the chemical shifts don't have to be perfectly identical. This parameter allows in the same way to define a tolerance until which they are assumed to be the same.

delta: float

Small parameter to avoid division by zero, when creating the weight matrix for the clustering.

threshold_matrix_elements: float

In the final evaluation a lot of matrix elements $⟨n|I_l^{+}|m⟩$ evaluate to zero and hence do not need to be included, when performing the summation for each frequency. We therefore remove all matrix elements below this threshold beforehand.

verbose: int Verbosity of output

Specifically when set to one, the partitioning, as well as the identified groups and the clustering is printed. For further debug information it may be set higher.

Automated solver

Introduction

The automated solver is based on the other frequency solvers, but operates in multiple steps trying to identify the most optimal route to evaluate an NMR spectrum under computational constraints. It can be used as a black box solver and should be used per default. Also, it allows the evaluation of the exact spectrum without any approximations by setting the flag calc_exact=True. The advantage is, that it still exploits local SU(2) symmetry if it gives an improvement in runtime (see below for details).

The setup is the same as for the direct solver. Meaning based on a struqture Hamiltonian input the spectral function is computed from the correlation function ${\hat{M}}^{-}{\hat{M}}^{+}$, where $\hat{M}$ corresponds to the spin operator including the gyromagnetic factors gamma, ${\hat{M}}^{\alpha }={\sum }_{\ell }{\gamma }_{\ell }{\hat{I}}_{\ell }^{\alpha }$, ${\hat{I}}^{\alpha }={\hat{S}}^{\alpha }/\hslash$.

Math

As for all of the frequency solvers the resolvent representation (see chapter math) is used. The correlation function is given as

$$\begin{array}{rl}{\mathcal{G}}_{\eta }(\omega )& =\sum _n{\mathrm{e}}^{-\beta E_n}⟨n|{\hat{M}}^{-}\frac{1}{\omega -\left(\hat{H}-E_n\right)+i\eta }{\hat{M}}^{+}|n⟩/Z\\ & \\ {\mathcal{G}}_{\eta }(\ell ,\omega )& =\sum _n{\mathrm{e}}^{-\beta E_n}{\gamma }_{\ell }⟨n|{\hat{I}}_{\ell }^{-}\frac{1}{\omega -\left(\hat{H}-E_n\right)+i\eta }{\hat{M}}^{+}|n⟩/Z\end{array}$$

The solver first checks whether the number of spins in the molecule is smaller than some maximum number of spins. If so, it evaluates the spectrum using a direct approach. If not, it performs a partitioning and checks whether the individual partitions are smaller than the specified maximum number of spins. If so, it solves them again using the direct approach. If not, it identifies the groups in the partition and checks if it can solve the partition with a reasonable runtime exploiting local SU(2) symmetry. If also this does not work, it automatically performs a spin-dependent clustering. For each cluster we check additionally if we can gain any accuracy by exploiting the local SU2 symmetry and still have a reasonable runtime.

For details on the partitioning and exploitation of local SU(2) symmetry, check out the documentation of the cluster solver, and for spin-dependent clustering, see the documentation of the spin-dependent cluster solver.

Runtime estimation

When evaluating the spectral function, diagonalizations have to be performed for each block in the Hamiltonian. The difference between using the local SU(2) symmetry or not is just the number and sizes of the identified blocks. While identifying more blocks automatically means smaller block sizes, performing the diagonalization in each block leads to a computational overhead. Since each diagonalization scales roughly with $di{m}^3$, where $dim$ is the dimension of the hamiltonian block, a cost factor can be estimated by iterating over all identified blocks and adding up the cost factors. Doing this for approaches with and without local SU(2) symmetry allows us to determine whether it should be exploited or not.

Extra Arguments

eta: float Artificial broadening.

The broadening $\eta$ is formally necessary to ensure the convergence of the Fourier integral. In practice it corresponds to the unknown or neglected noise, being intrinsic for the resolution limitation of the spectrometer. Note that the complete spectral function is positive, $A(\omega )\ge 0$. However, the spin-resolved spectral functions can be negative.

beta: float Inverse temperature.

$\beta =1/(k_{\mathrm{B}}T)$.

Due to the low energy of nuclear spin excitations the temperature in real measurements is practically infinite, i.e. $\beta =0$. For theoretical studies or comparison to very low temperature NMR measurements one can apply finite temperatures.

Note: Currently only the case $\beta =0$ is implemented.

max_cluster_size: int Maximum cluster size.

This has to be set according to restraints imposed by the computational resources available. Note that symmetric groups are viewed as one site, with an effective number of sites corresponding to the spin representation of the group.

tolerance_couplings: float Tolerance for the J-coupling when identifying symmetry groups.

When the symmetry groups are identified, the coupling to the outside does not have to be perfectly symmetric, as there might be small deviations in the input parameters. Hence this parameter allows you to define a tolerance for the J-coupling until which spins are assumed to couple symmetric.

tolerance_shifts: float Tolerance for the chemical shifts when identifying symmetry groups.

Similarly to the tolerance for the J-couplings the chemical shifts don't have to be perfectly identical. This parameter allows in the same way to define a tolerance up to which they are assumed to be the same.

delta: float

Small parameter to avoid division by zero, when creating the weight matrix for the clustering.

threshold_matrix_elements: float

In the final evaluation a lot of matrix elements $⟨n|I_l^{+}|m⟩$ evaluate to zero and hence do not need to be included, when performing the summation for each frequency. We therefore remove all matrix elements below this threshold beforehand.

calc_exact: bool

If you set to True, the solver performs an exact calculation, but uses the direct approach, or the one exploiting the local SU2 symmetry depending on a comparison of the estimated runtime of both approaches.

verbose: int Verbosity of output.

Specifically when set to one, the partitioning, as well as the identified groups and the clustering is printed. For further debug information it may be set higher.
