Local Usage

Prerequisites

Installation

While it's best to start in a fresh virtual environment, you can simply pip install HQStage into any existing Python environment. Below we show both options and also our preferred way of using HQStage with uv.

{{#tabs global="install"}} {{#tab name=pip }}

pip install hqstage
hqstage init

{{#endtab }} {{#tab name=venv }}

python3 -m venv .hqsenv
source .hqsenv/bin/activate
pip install --upgrade pip
pip install hqstage
hqstage init

{{#endtab }} {{#tab name=uv }}

A simple way to install Python on your system is using uv. To install uv use (this will execute an external script not managed by HQS!)

curl -LsSf <https://astral.sh/uv/install.sh> | sh

Once uv is installed:

uv venv --python 3.11 .hqsenv
source .hqsenv/bin/activate
uv pip install hqstage
hqstage init

Using uv venv --python 3.11 .hqsenv to create a new virtual environment will download and install Python 3.11 if no Python executable is found on your machine.

{{#endtab }} {{#endtabs }}

The hqstage init command will prompt you to create an account and user token on https://cloud.quantumsimulations.de.

Intel's Math Kernel Library

Some HQStage Modules use Intel's MKL library to accelerate mathematical calculations. You can install MKL using

hqstage install mkl

The command ensures that runtime libraries of mkl are present in the correct format in your environments lib folder.

Free trial

To get started with your first quantum computing use case request a free trial. This free trial will add the HQS Spectrum Tools to your account which we will use to run our first example use case: a NMR spectrum prediction.

Running your first use case example: NMR

Install the requried modules

hqstage install ipython jupyter matplotlib mkl hqs_spectrum_tools

and open an ipython interpreter:

ipython

Now, copy paste the following code snippet:

from hqs_nmr_parameters import examples
from hqs_nmr import NMRCalculationParameters, calculate_spectrum
from matplotlib import pyplot as plt
from rdkit.Chem import Draw, MolFromMolBlock
print(f"Available moleucules: {examples.molecules.keys}")
molecule_name = '1,2,4-trichlorobenzene'
molecule_parameters = examples.molecules[molecule_name]
rdkit_mol = MolFromMolBlock(molecule_parameters.structures["Molfile"].content)
mol_image = Draw.MolToImage(rdkit_mol)
fig, ax = plt.subplots(figsize=(10, 6))
for field_T in [1, 5, 10]:
    result = calculate_spectrum(molecule_parameters, NMRCalculationParameters(field_T=field_T))
    ax.plot(result.spectrum.omegas_ppm, result.spectrum.intensity, label=f"B={field_T}T")
plt.legend()
ax.set_xlabel(r"$\delta$ [ppm]")
ax.set_ylabel("Intensity, arb. units")
ax.set_title(f"Spectrum of {molecule_name}")
ax_image = fig.add_axes(
    [0.1,
    0.6,
    0.25,
    0.25]
)
ax_image.imshow(mol_image)
ax_image.axis('off')
plt.show()

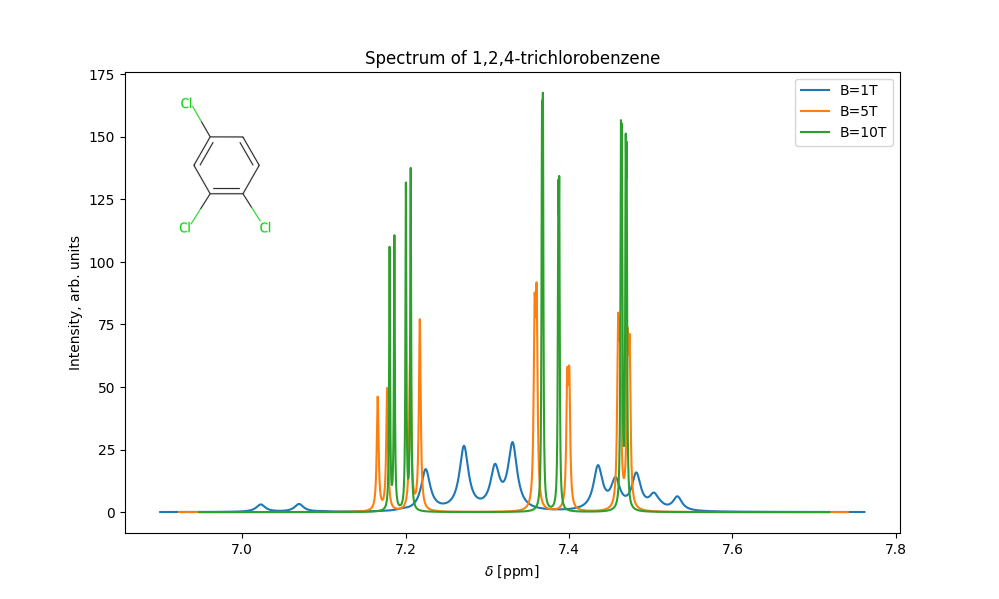

This will calculate the NMR spectrum for 1,2,4-trichlorobenzen and produce the following plot:

Example NMR spectrum.

Downloading and using our examples

Download the use-case and spectrum examples

mkdir -p ~/HQStage/Examples
hqstage download-examples --download-dir ~/HQStage/Examples
jupyter lab --notebook-dir ~/HQStage/Examples

This will open jupyter lab in the folder where we have downladed the HQStage examples in. Fell free to explore the examples andadjust to your needs or continue reading more about our use cases
